High speed servo packaging machine CCP-HPFS220

Specifications

Type CCP-HPFS220
Film width Max 220mm
Bag length 60-1000mm
Bag width 30-90mm
Product height 5-35mm
Film roll diameter Max 300mm
Packaging speed 20-220bag/min
Packaging materials OPP,OPP/PE,OPP/CPP,PT/PE,KOP/CPP,ALU-FILM
Power condition 220V,50/60Hz,2.9KW
Machine Dimensions (L)4115×(W)830×(H)1400
Machine weight 450Kg

Feature

1.Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.

2.Human-machine interface, easy parameter setting. It can store 100 kinds of packing parameters.

3.Self failures diagnosis, clear failure displaying.

4.High sensitivity photocell, digital input of cutting and sealing position for extra accuracy.

5.Separate PID temperature control, suitable for packing different materials.

6.Positioning stop function, not adhesive to cutters and no waste of packing film.

7.Simple driving system, more reliable and more convenient maintenance.

8. Switch to the product inversion automatically, it is convenient to directly operate after reboot.

9.Without verpacking film, it will stop working automatically.

10.The flexible packaging can be realized according to the requirement , which is the length of the product is detected automatically, and the length of the verpacking film can automatically change without setting any parameters.

11.The optional model has full pull  packaging film type (product directly on  packaging film), belt type (convenient butt joint production line) and push-rod type three kinds of structure models.

Application

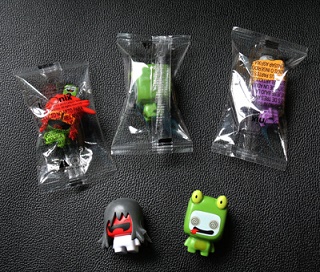

Applicable for packing various irregular objects、adhesive objects and solid objects, such as food, including egg rolls、sausages、squids 、instant noodles、snow cakes、preserved fruits、jelly drops etc; others, including soaps, essential balm mini-notebooks、box-packed pens、tapes、medicines etc. It’s widely used

attention

these are standard type of machine
we offer custom service according to your special requirements

L-type packing machine for book

L-type packing machine for vegetables with lunch box

L-type packing machine for frozen fish

L-type packing machine for sewing thread

L-type packing machine for lunch box
