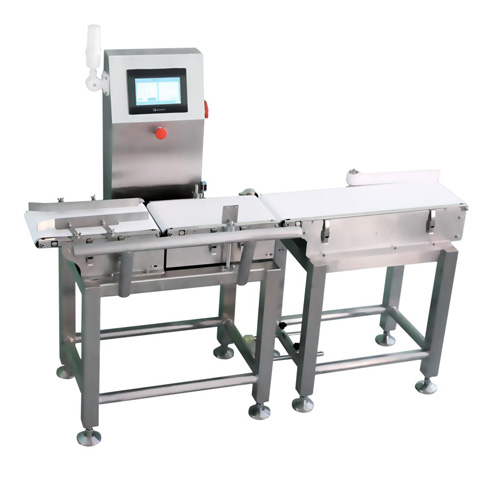

Standardization of all kinds of materials can be strengthened by man-machine interface.
Simple operation: the use of color human-machine interface, fully intelligent and humanized design; easy disassembly and assembly of conveyor belt, convenient installation and maintenance, and easy cleaning;
Adjustable speed: the motor is controlled by frequency conversion, and the speed can be adjusted according to needs;
High speed and high precision: high precision digital sensor is adopted, with high sampling speed and high precision;
Zero tracking: it can be reset manually or automatically, as well as dynamic zero tracking;
Report function: built in report statistics, report can generate excel format, can automatically generate a variety of real-time data reports,
The U-disk can store more than one year’s statistical data, hold the production status at any time, and provide the function of factory parameter setting and recovery.
Storage of a variety of formulations, easy to change product specifications.
Interface function: reserved standard interface, convenient data management, and communication connection with PC and other intelligent devices;
Self learning: after the new product formula information is created, there is no need to set parameters, and the self-learning function is used to automatically set the suitable parameters of the equipment, and the storage is convenient for calling when switching products next time. (2000 parameter storage entries, which can be added).
Operation mode: three operation modes
a.Dynamic mode: normal pipeline mode;
b.Static mode: the weighing platform stops running after the material enters the weighing platform to improve the accuracy, which is suitable for products with less than 20 passes per minute;
c.Energy saving mode: (optional) on the basis of mode a and mode B, the energy-saving mode can be opened, and the duration of shutdown without material passing through can be set. When the equipment idles for a long time, it will stop automatically, and it will start automatically when there is material passing through.
fault self detection: self detection: whether the motor, frequency converter, ad, sensor and photoelectricity are normal and fault causes, as well as the guided detection of cylinder, solid state relay and solenoid valve. Convenient for non professional personnel to check and repair.
peripheral equipment communication: standard configuration of RS-485 and RS-232 dual communication port output.
The RS-485 interface is MODBUS and RTU standard protocol, but it can be modified by itself, and the write address (57600bps, 8, N, 1, slave station number is 3) can not be modified.
a.(optional) RS-232 interface is a user-defined protocol, which can set the content of instruction sending. (57600bps, 8, N, 1) can be modified.
b.External printer or inkjet printer and other communication equipment can also be connected with the front and rear packaging machines and production equipment to feed back the weighing results, so that the formula parameters can be automatically modified.
Chinese input method
a.The formula name can be input in Chinese, which is more intuitive when searching and switching recipes.
b.With RS-232 communication port, it can send Chinese characters of Unicode string to peripheral devices. (suitable for external printer or marking machine to print Chinese characters).
